Video instructions on removing electrode from piezo film to produce your own sensors, actuators, speakers, transducers:

1. Sputtered Cu/Ni (80nm): PVDF film thickness: 28 um, 45-50 um, 110 um. Copper can be etched by FeCl3.

2. Screen printed silver ink (5-8 um thick): PVDF film thickness: 28 um, 45 um, 100 um, 120 um. Silver ink can be wiped by acetone or even alcohol

3. Sputtered aluminum (50 nm or 100 nm), PVDF 17 um, 28 um, 45 um, 100 um. Aluminum can be etched by NaOH, KOH, HCl

4. Sputtered ITO electrodes (optically transparent): PVDF thickness 28 um (ITO 300 ohm); 50 um (ITO 200 ohm), 75 um (150 ohm), and 100 um (ITO 150 ohm). ITO can be etched by HCl.

5. Sputtered gold (100 nm thick), gold can be etched by “Antistrumin, Potassium monoiodide” [Google “gold etchant”]

Quick view

PVDF poled piezoelectric film, uniaxially oriented, 500 um thick. Copper or Gold Electrode

MSRP:

Was:

Now: $1,000.00

Choose Options
Quick view

Low Temperature and Flexible Silver Epoxy for attaching wires to PVDF and PVDF-TrFE

MSRP:

Was:

Now: $30.00

Add to Cart
Quick view

PVDF homopolymer piezoelectric film ultrasound transducer with Ag electrode, 11um or 30 um thick

MSRP:

Was:

Now: $200.00

Choose Options
Quick view

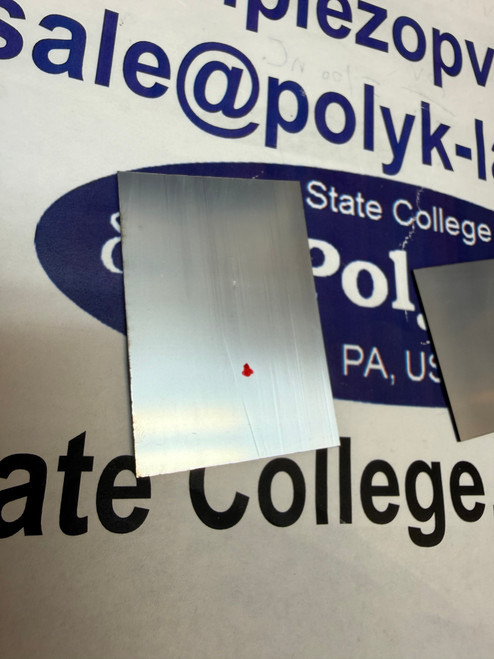

PVDF poled piezoelectric film, uniaxially oriented, 500 um thick. Aluminum Electrode

MSRP:

Was:

Now: $500.00

Choose Options
Quick view

Large Magnetron Sputter Coater 500 mm diameter stainless steel vacuum chamber, Three Sputter Head with Turbo Pump, Copper, Al, Cr, Gold & Silver
Quick view

Poled Piezoelectric film with gold electrode, Biaxially Oriented with d33, d31, and d32

MSRP:

Was:

Now: $650.00

Choose Options
Quick view

Poled Piezoelectric film with aluminum electrode, Biaxially Oriented with d33, d31, and d32

MSRP:

Was:

Now: $550.00

Choose Options
Quick view

PVDF poled piezoelectric film, 200 um thick, 210 mm x 150 mm. Aluminum Electrode

MSRP:

Was:

Now: $400.00

Add to Cart
Quick view

100um thick PVDF piezoelectric film, Screen-Printed Silver Electrode, with connection wires

MSRP:

Was:

Now: $350.00

Choose Options
Quick view

PVDF piezo film, 100um/28um/45um/120um thick, Sputtered 50 nm thick Aluminum Electrode, Pack of Five or Ten 200 mm x 280 mm

MSRP:

Was:

Now: $1,000.00

Choose Options
Quick view

PVDF piezo film, 28um/45um/100um/120um thick, Screen-Printed Silver Electrode, Pack of Five or Ten 200 mm x 280 mm

MSRP:

Was:

Now: $1,250.00

Choose Options
Quick view

PVDF poled piezoelectric film, hydrophone, 1000 um thick. Gold Electrode

MSRP:

Was:

Now: $1,200.00

Add to Cart

Quick view

PVDF poled piezoelectric film, uniaxially oriented, 500 um thick. Copper or Gold Electrode

High d33 >25 pC/N. Piezoelectric PVDF Film, 500 um thick, With 100 nm Aluminum, Copper or 100 nm thick Cr/Au gold Electrode, For research and development. Uniaxially oriented in one direction (length direction) Size is 210 mm x 160 mm. Please choose...

MSRP:

Was:

Now: $1,000.00

Choose Options
Quick view

Low Temperature and Flexible Silver Epoxy for attaching wires to PVDF and PVDF-TrFE

Silver epoxy with low curing temperature (20-60 C) for attaching wires to piezo PVDF and PVDF-TrFE sensors. Soft, glass transition of 5 C. will not corrode PVDF, but NOT good for PVDF-TrFE Two components, about 2.5 g.

MSRP:

Was:

Now: $30.00

Add to Cart
Quick view

PVDF homopolymer piezoelectric film ultrasound transducer with Ag electrode, 11um or 30 um thick

Poled PVDF homopolymer piezoelectric film with 6 mm diameter silver electrode. with electrode tail for electrical connection. cut to 16 or 100 transducers Thickness of PVDF film: 11 um or 30 um thick Thickness: 30 um, other thickness can be...

MSRP:

Was:

Now: $200.00

Choose Options
Quick view

PVDF poled piezoelectric film, uniaxially oriented, 500 um thick. Aluminum Electrode

High d33 >25 pC/N. Piezoelectric PVDF Film, 500 um thick, Aluminum Electrode, For research and development. Uniaxially oriented in one direction (length direction) Aluminum can be removed by NaOH aqueous volution. Sell with different sizes For piezo...

MSRP:

Was:

Now: $500.00

Choose Options
Quick view

Large Magnetron Sputter Coater 500 mm diameter stainless steel vacuum chamber, Three Sputter Head with Turbo Pump, Copper, Al, Cr, Gold & Silver

This listing is for a lightly-used three-head DC magnetron sputter coater system (three sputtering targets). Magnetron Sputter Coater with Turbo Pump, a RV12 Edwards Pump, water chiller, with all parts. With turbo pump, vaccuum up to 0.001 Pa. We used it...
Quick view

Poled Piezoelectric film with gold electrode, Biaxially Oriented with d33, d31, and d32

Poled PVDF piezoelectric film with 100 nm thick gold electrode. Three Thickness avaiable: 8 um, 11 um, 23 um, 40 um, d33 >15 pC/N. d31 and d32 >12 pC/N as this film is biaxially oriented. [values may be related to film thickness] Size of...

MSRP:

Was:

Now: $650.00

Choose Options
Quick view

Poled Piezoelectric film with aluminum electrode, Biaxially Oriented with d33, d31, and d32

Poled PVDF piezoelectric film with 100 nm thick aluminum electrode. Three Thickness avaiable: 8 um, 11 um, 23 um, 40 um, d33 >15 pC/N. d31 and d32 >12 pC/N as this film is biaxially oriented. [values may be related to film thickness] Size...

MSRP:

Was:

Now: $550.00

Choose Options
Quick view

PVDF poled piezoelectric film, 200 um thick, 210 mm x 150 mm. Aluminum Electrode

High d31>25 and d33 >20 pC/N. Piezoelectric PVDF Film, 200 um thick, 210 mm x 150 mm, Aluminum Electrode, For research and development. For piezo sensors. loudspeakers, hydrophones

MSRP:

Was:

Now: $400.00

Add to Cart
Quick view

100um thick PVDF piezoelectric film, Screen-Printed Silver Electrode, with connection wires

Poled PVDF piezoelectric film with 5 um thick silver ink electrode. PVDF film thickness: 100 um, size is 200 mm x 280 mm (silver area), with two sets of connection wires (two positive + two negative diagnal), 24 AWG silicone insulated wires (40 cm long...

MSRP:

Was:

Now: $350.00

Choose Options
Quick view

PVDF piezo film, 100um/28um/45um/120um thick, Sputtered 50 nm thick Aluminum Electrode, Pack of Five or Ten 200 mm x 280 mm

Poled PVDF piezoelectric film with sputtered 50 nm thick aluminum electrode. Choose one of Three PVDF film thickness: 28 um, 45 um, 100 um, or 120 um. High d31 >25 pC/N, d33 > 20 pC/N Size is 200 mm x 270 mm, sell at discounted price for batch of...

MSRP:

Was:

Now: $1,000.00

Choose Options
Quick view

PVDF piezo film, 28um/45um/100um/120um thick, Screen-Printed Silver Electrode, Pack of Five or Ten 200 mm x 280 mm

Poled PVDF piezoelectric film with 5 um thick silver ink electrode. Choose one of Three PVDF film thickness: 28 um, 45 um, 100 um, or 120 um. High d31 >25 pC/N, d33 > 20 pC/N Size is 200 mm x 270 mm, sell at discounted price for batch of five or...

MSRP:

Was:

Now: $1,250.00

Choose Options
Quick view

PVDF poled piezoelectric film, hydrophone, 1000 um thick. Gold Electrode

High d33 >22 pC/N. Piezoelectric PVDF Film, 1000 um thick, Gold Electrode, For research and development. size: 105 mm x 105 mm Voltage coefficient g33: higher than 200 V-m/N Sell with different sizes For piezo sensors. loudspeakers, hydrophones

MSRP:

Was:

Now: $1,200.00

Add to Cart
