Product Description

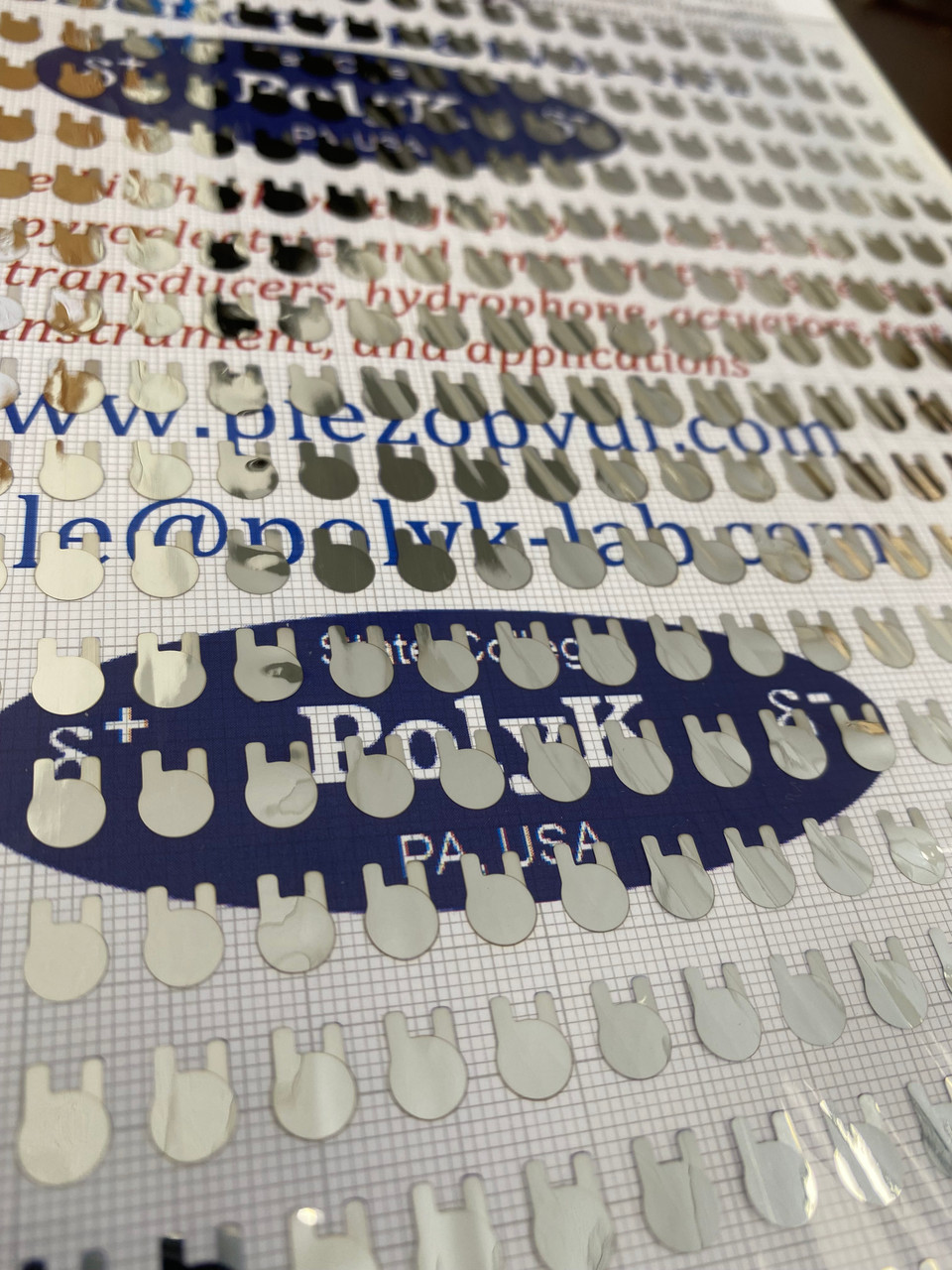

Poled PVDF homopolymer piezoelectric film with 6 mm diameter silver electrode. with electrode tail for electrical connection. cut to 16 or 100 transducers
Thickness of PVDF film: 11 um or 30 um thick
Thickness: 30 um, other thickness can be produced based on request
d33 >23 pC/N.
d31 ~ 15 pC/N
Dielectric Constant: ~13
Coupling Factor: >0.15
Resonance Frequency: ~30 MHz (100 MHz for 11 um and 50 MHz for 20 um thickness)
