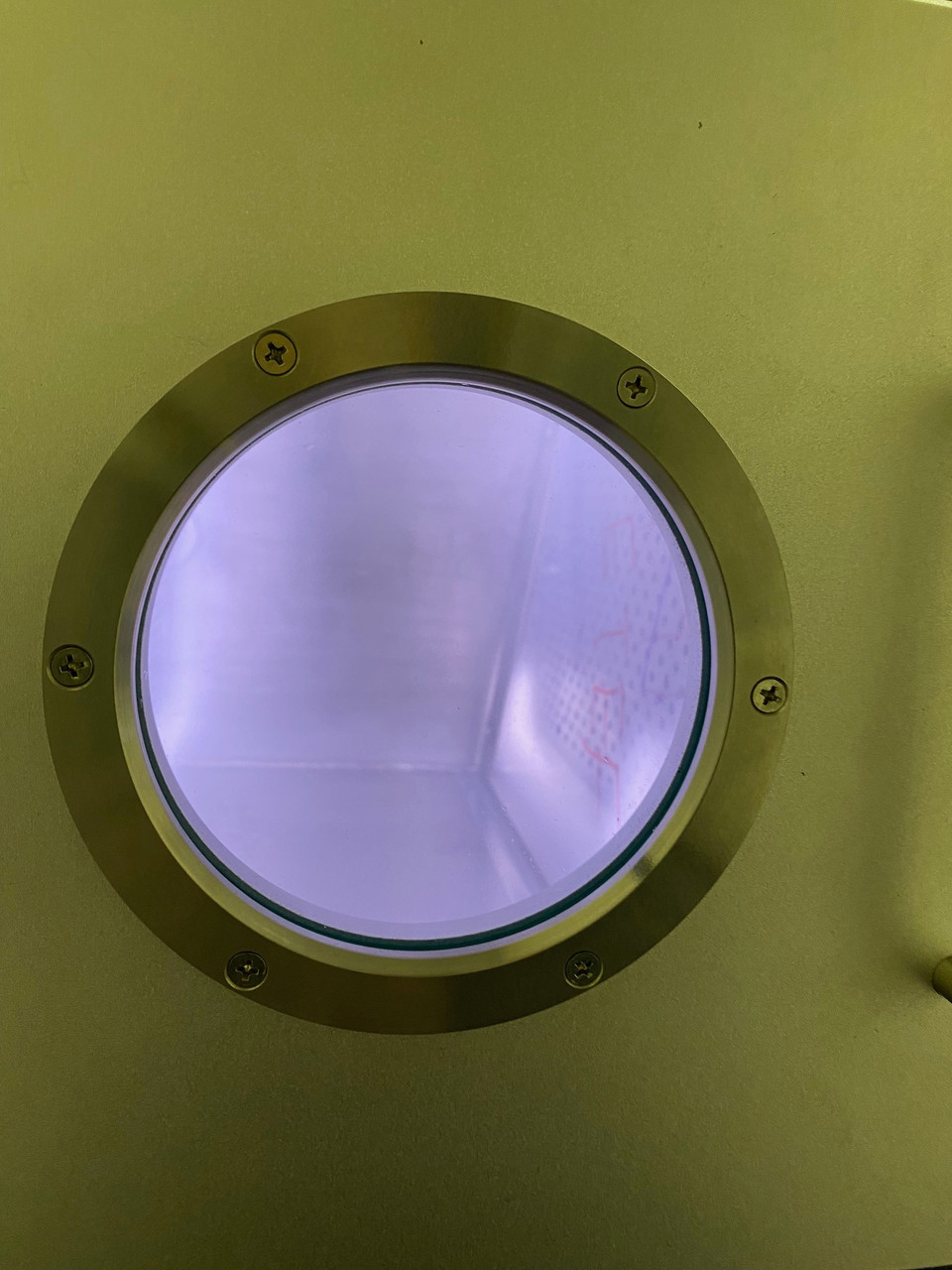

Large Size RF Plasma Cleaner Vacuum 60 L to 200 L

Specifications

1. RF Plasma output power: up to 1000 W, adjustable
2. Plasma frequency: 40 kHz or RF 13.56MHz
3. Treat both surfaces in one run, including thin film holder and stand.
4. Vacuum level: <5 Pa
5. Plasma working vacuum: 20-40 Pa
6. Two-stage mechanical pump, controlled by main control system
7. Two gas inlets and flowmeters to control two types of gases during plasma (Argon Ar or oxygen)

Soft plasma can clean the surface (remove contamination) and even make the surface reactive. Therefore significantly enhance its adhesion to coating and electrodes (gold, silver, copper, aluminum, etc). Comparing with corona surface treatment, it will cause less thermal damage to thin and delicate plastic film such as thin piezo film.



Perfect for batch process of paper or plastic sheet to enhance their surface energy for adhesion (lamination) or wetting property for printing, painting.



Can also be used to process irregular 3D objects.

Other size can be produced upon request.

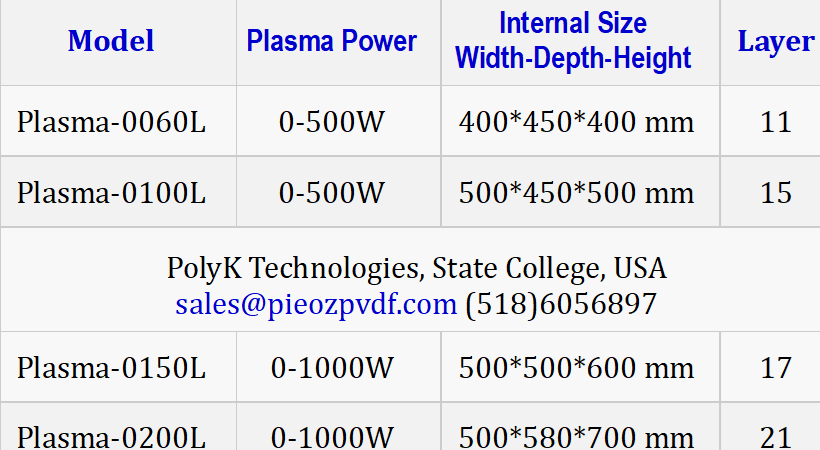

Four Different Sizes as shown in the second photo. 60 L, 100 L, 150 L, 200 L.

we will provide a special internal shelf for customer processing thin plastic film or metal foils. up to 21 layers.
