Product Description

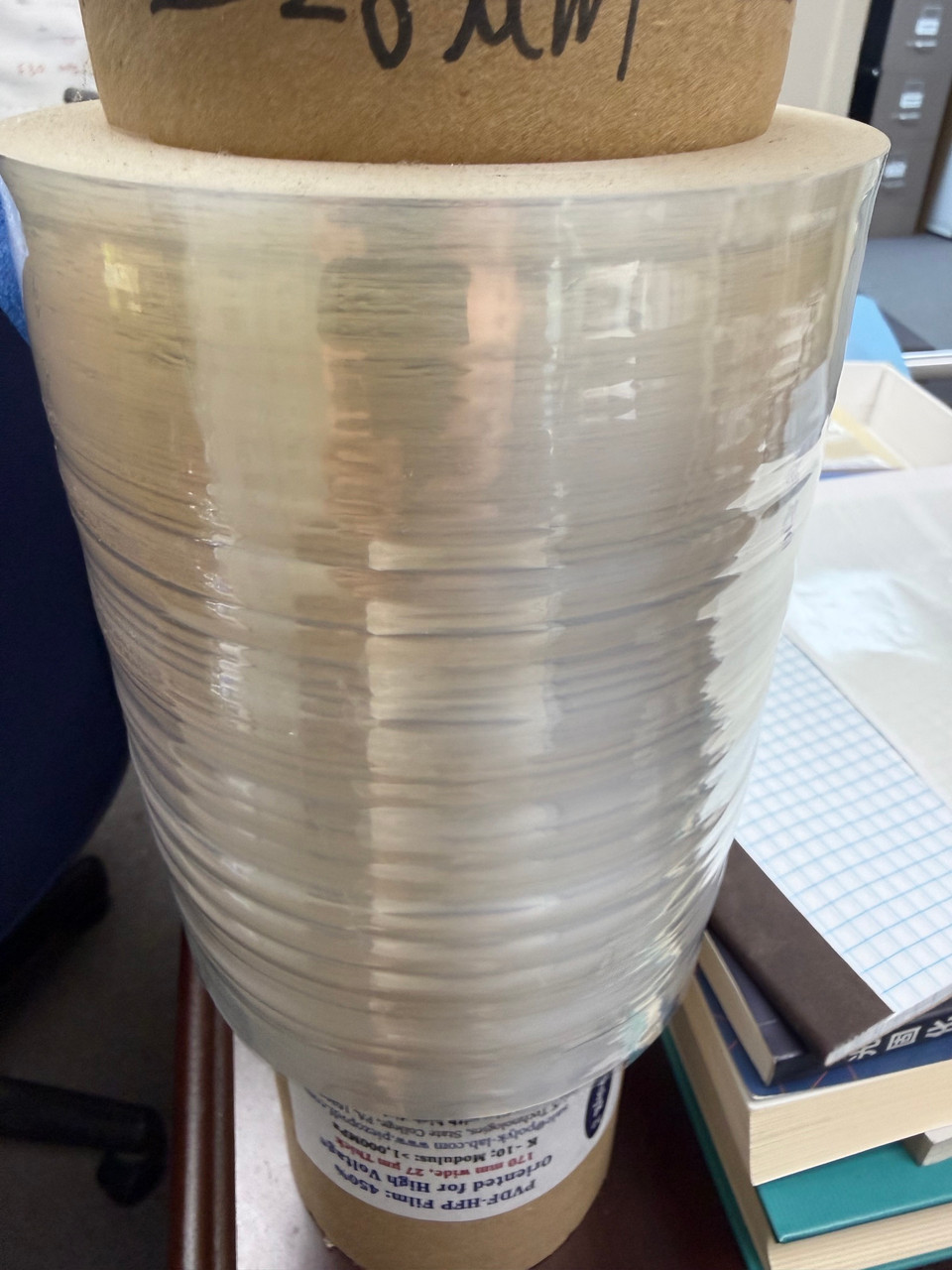

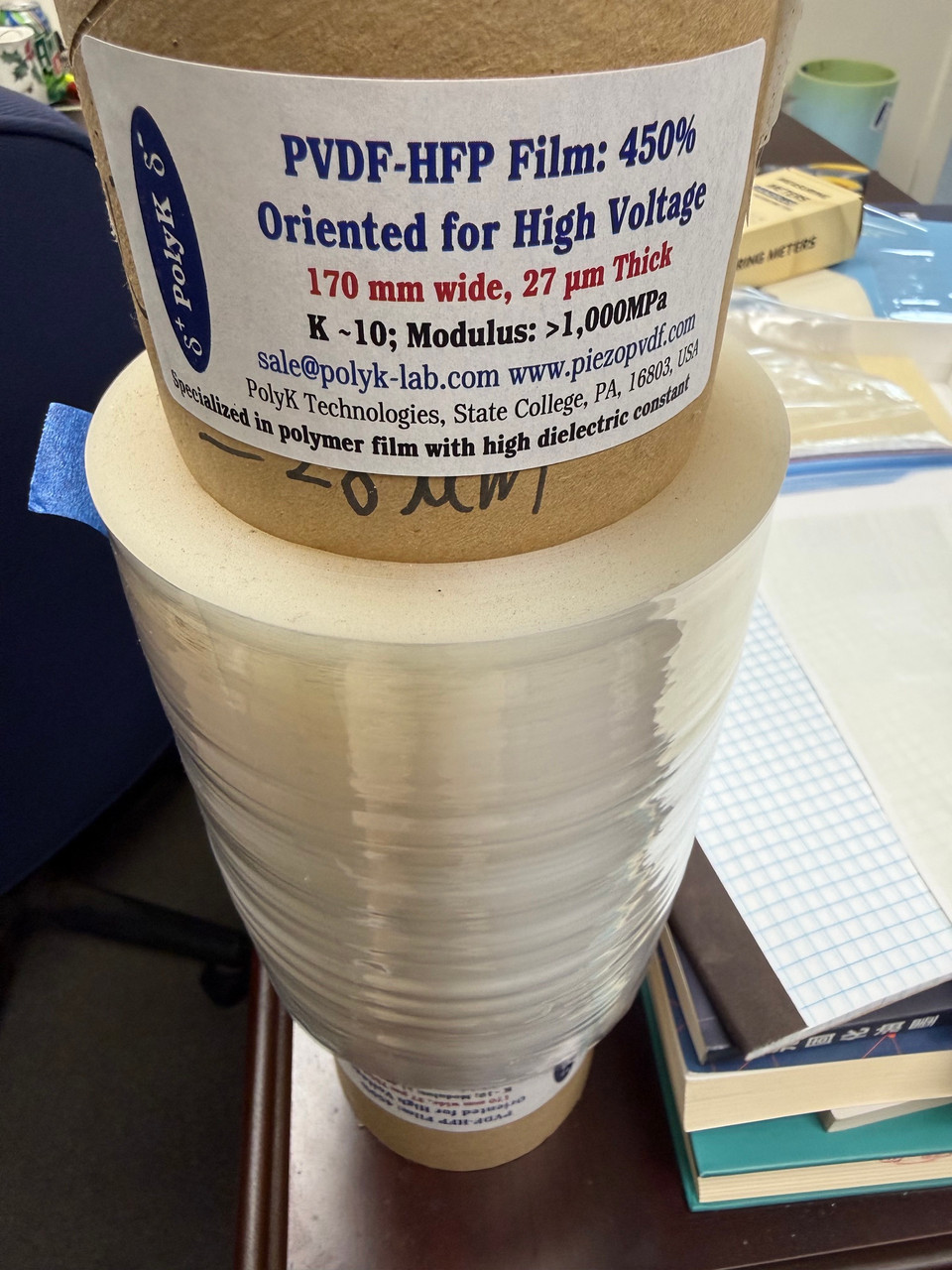

Uniaxially oriented PVDF-HFP film with thickness ~ 27 um. High dielectric constant >10, High Dielectric Breakdown Strength > 600 MV/m. Great for high energy density film capacitors and piezo film
Film width is 170 mm, each order will have about 3 m long film.
Minimal remnant polarization, great for electrostatic adhesive and HASEL (hydraulically amplified self-healing electrostatic) actuators.
The orientation significantly improved the dielectric breakdown strength (energy density) and reduced the leakage current and energy loss.
This film is NOT poled and it is non-piezoelectric. But the customer can pole the film by themselves.
Related publications:
HIGH ENERGY DENSITY FILM CAPACITORS https://pdfs.semanticscholar.org/bb9b/3f453fa4a838607814e4a77800a66ebb80f9.pdf
https://ieeexplore.ieee.org/document/5386360
Science: A Dielectric Polymer with High Electric Energy Density and Fast Discharge Speed
