    Walking Shoe Energy Harvesting: Piezo PVDF 54 mm wide and 200 mm long with electrode

    PolyK

    MSRP:
    Now: $90.00
    (You save )
    SKU:
    PKS--Shoe200mm-1

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Other Details

    Product Description

    Piezo PVDF film with screen printed silver electrode 54 mm wide and 200 mm long: designed for inside shoes to convert walking mechanical energy to electrical energy.

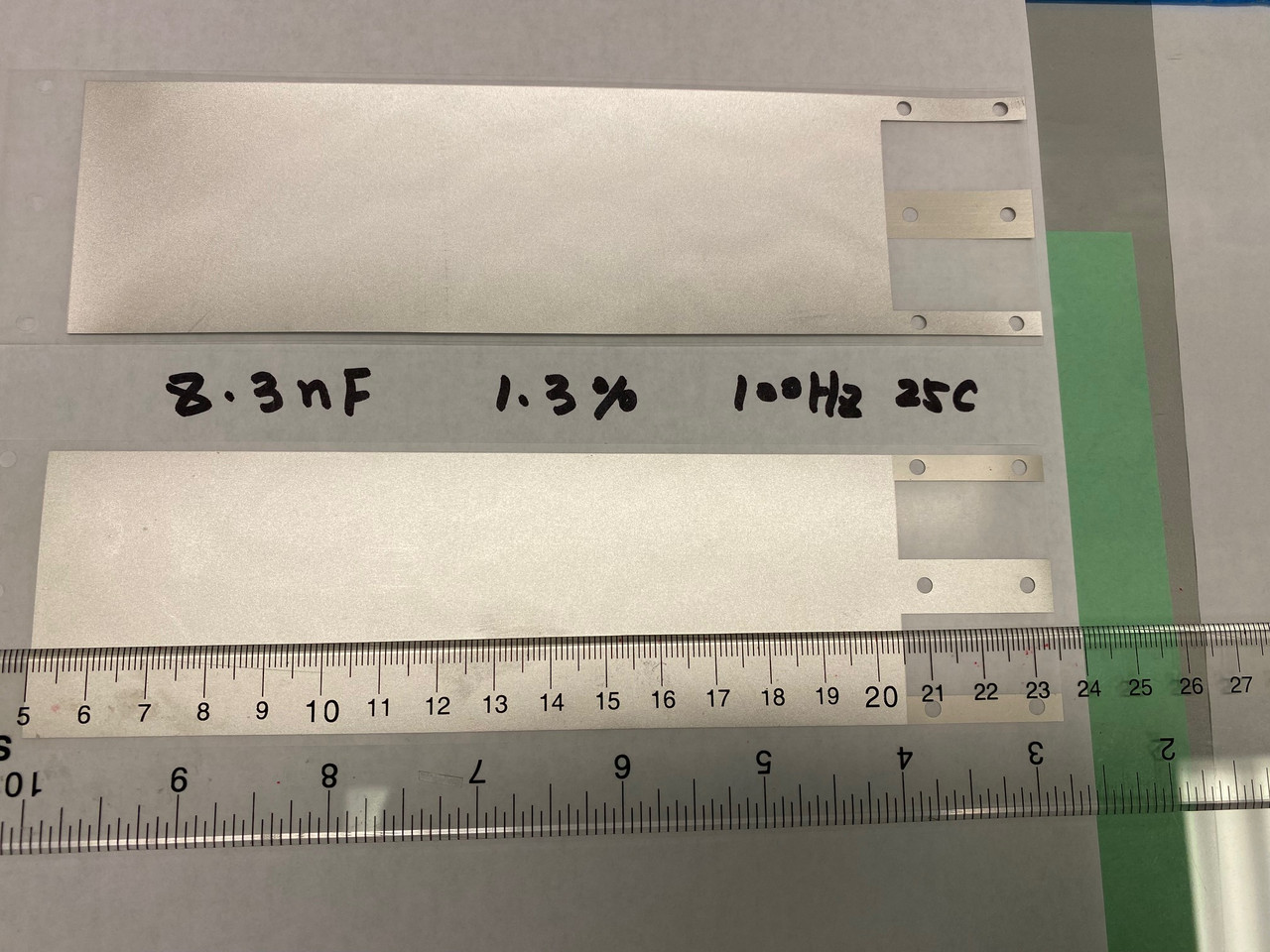

    with 110 um thick PolyK piezo PVDF film. ~8.3 nF capacitance and 50mm x 155 mm active area, the piezo PVDF film can convert mechanical vibration to >100 V output and ignite a neon bulb.

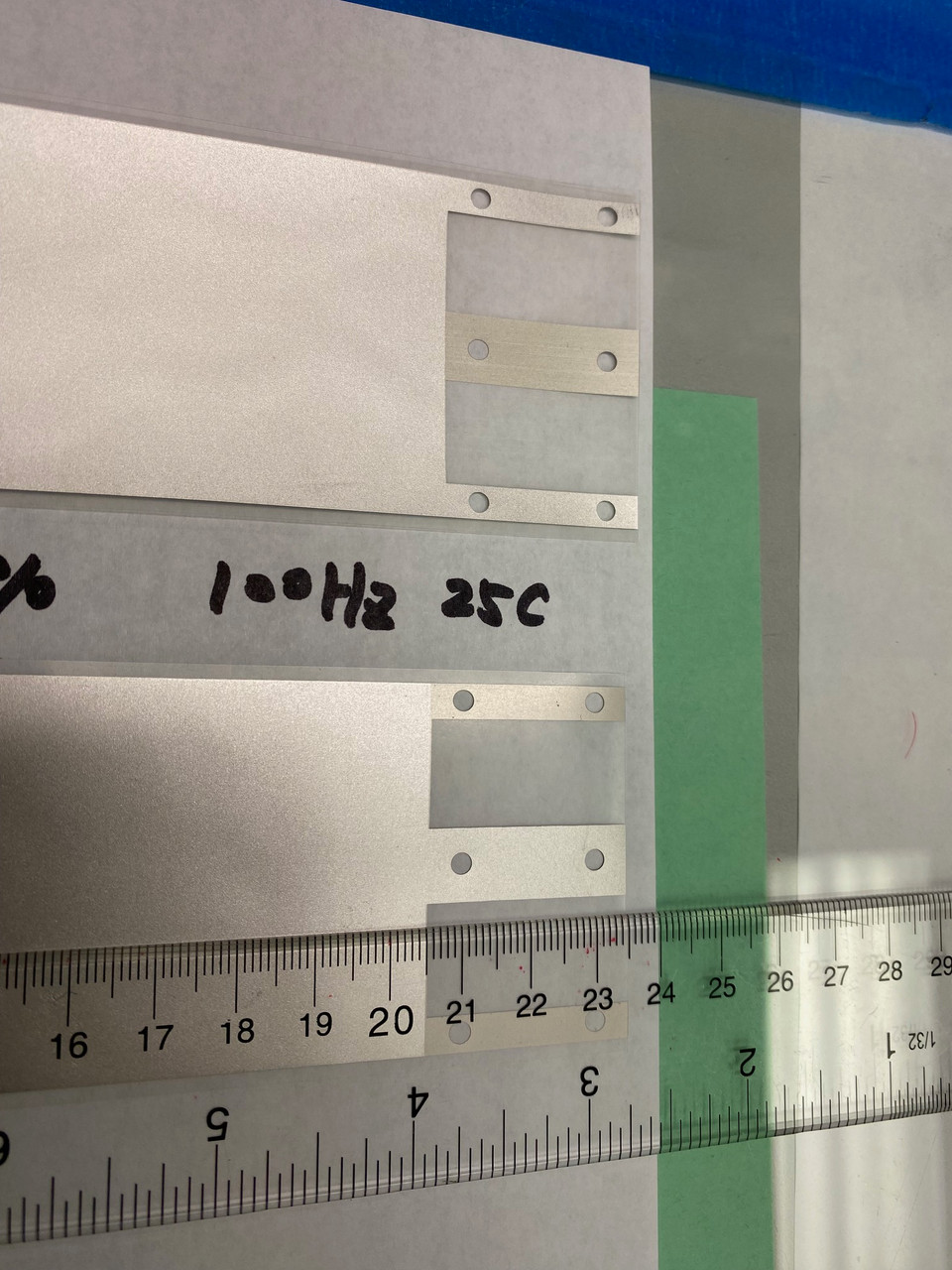

    It has pre-cut holes for you to hold it to a frame. the electrical connections is designed such that the customer can easily laminate two layers electrically parallet to achieve higher capacitance.

    We can apply soldering pin connections for free.

    We can apply rivet connectors and wires with a small fee. We can also help customer to laminate several layers together.

    It can also be used as a sensor.

    https://youtube.com/shorts/AMrfmrYkavM?feature=share



    Other sensor size can be produced upon request.

    You can also make your own energy harvesting "shoe" sole by following this procedure:

    http://www.mdpi.com/1424-8220/14/7/12497

    This can convert your walking to electrical energy and charge your smart phone or smart water.
