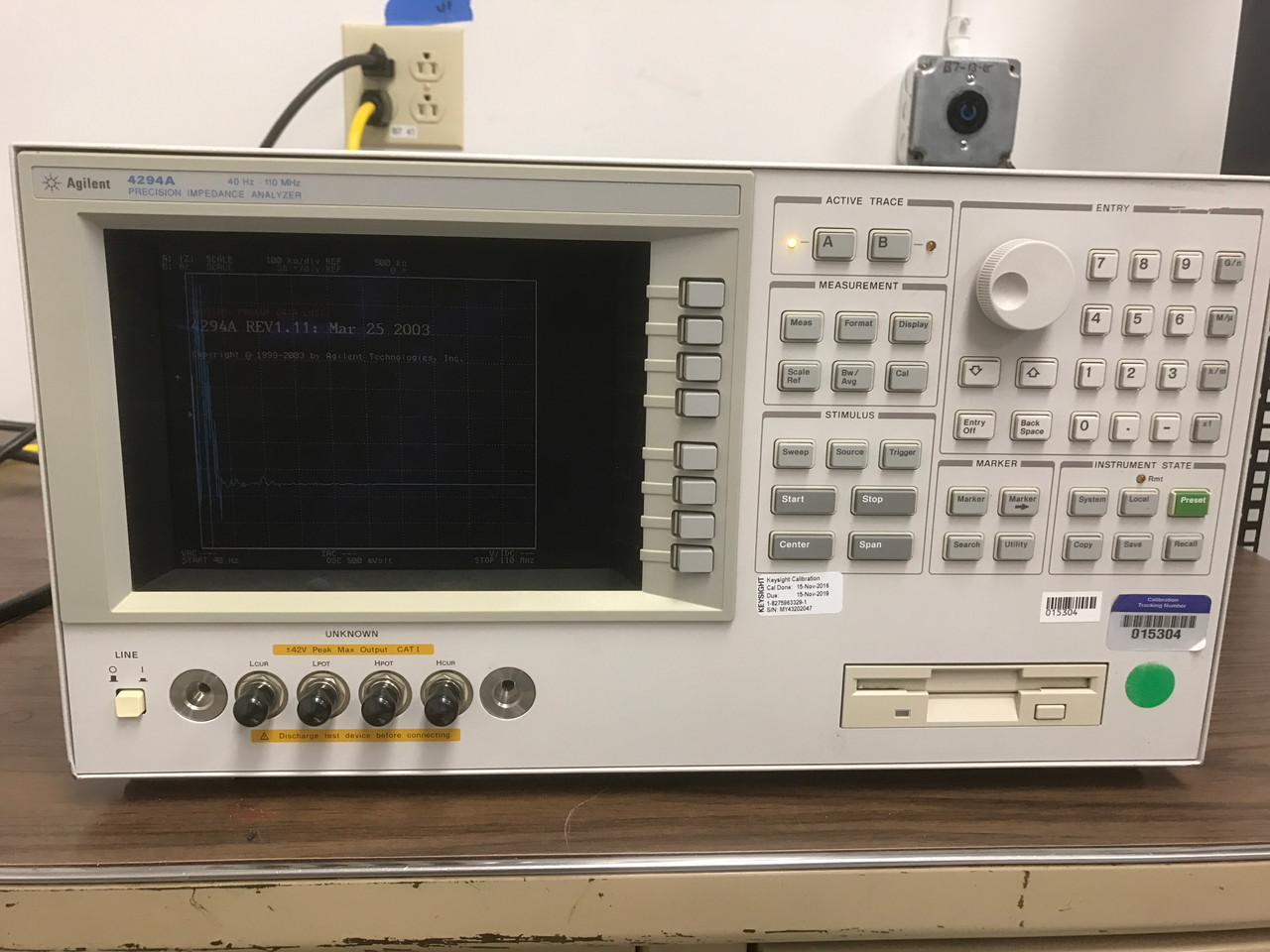

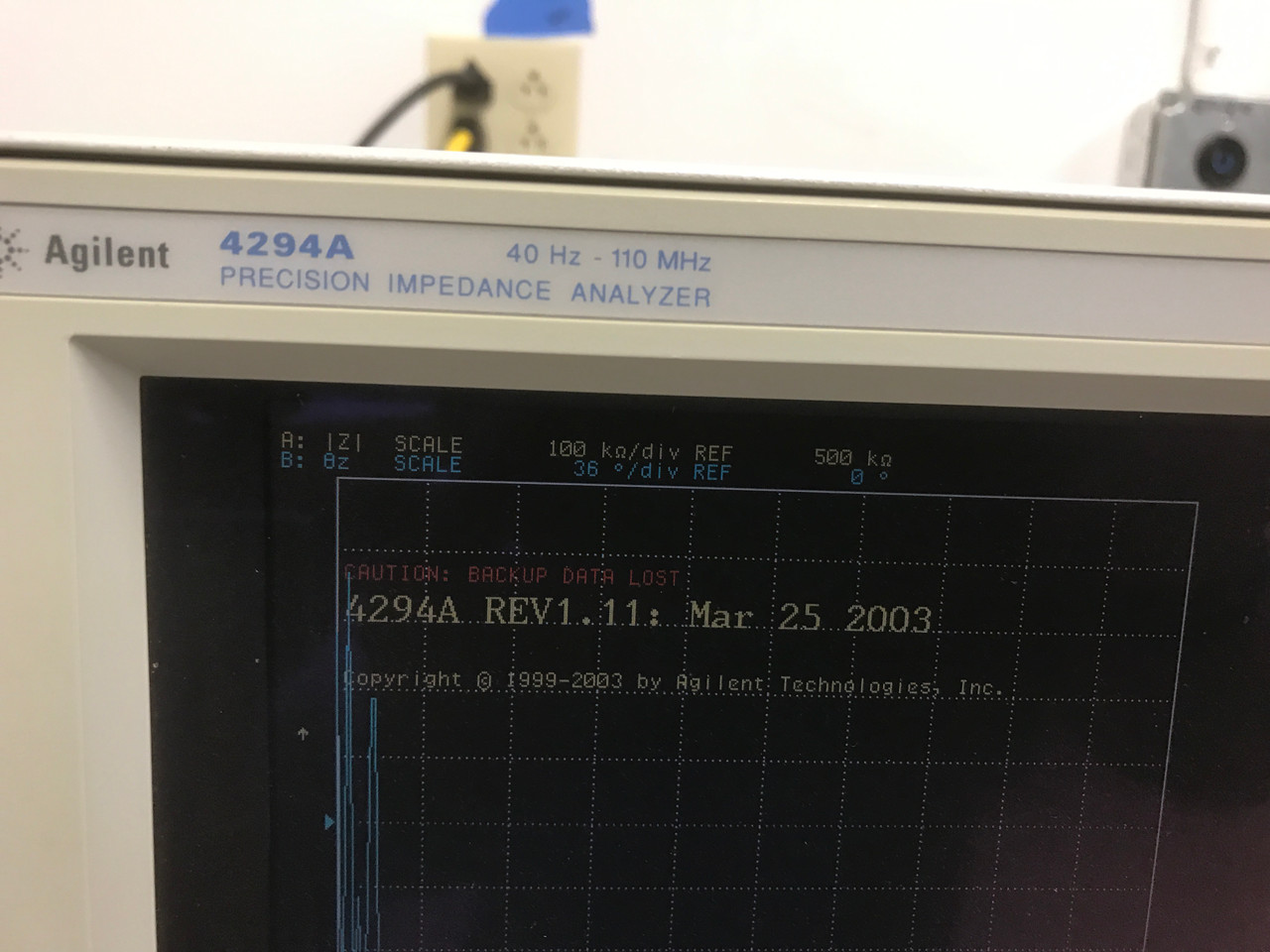

    Agilent 4294A 40 Hz - 110 MHz, Impedance/Gain-Phase Analyzer, cables, test fixture, software

    MSRP:
    Now: $12,000.00
    (You save )
    SKU:
    Agilent 4294A
    Condition:
    Refurbished
    Availability:
    Usually ship in 24 hours
    Width:
    61.00 (cm)
    Height:
    61.00 (cm)
    Depth:
    76.00 (cm)

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Other Details

    Product Description

    This is in great working condition, with all cables [manual available online]. Also come with a test fixture with good shielding [in the picture]. Control Software that can perform frequency scan and calculate resonance frequency, dielectric constant, and coupling factor.

    This list includes:

    1,. 4294A Impedance Analyzer 40 Hz to 110 MHz

    2. Test Fixture that can be directly mounted to the front connectors. With spring loaded electrodes for small samples such as ceramic discs, surface mounted capacitors, thin polymer film,

    3. GPIB-USB Cable to connect the analyzer to computer

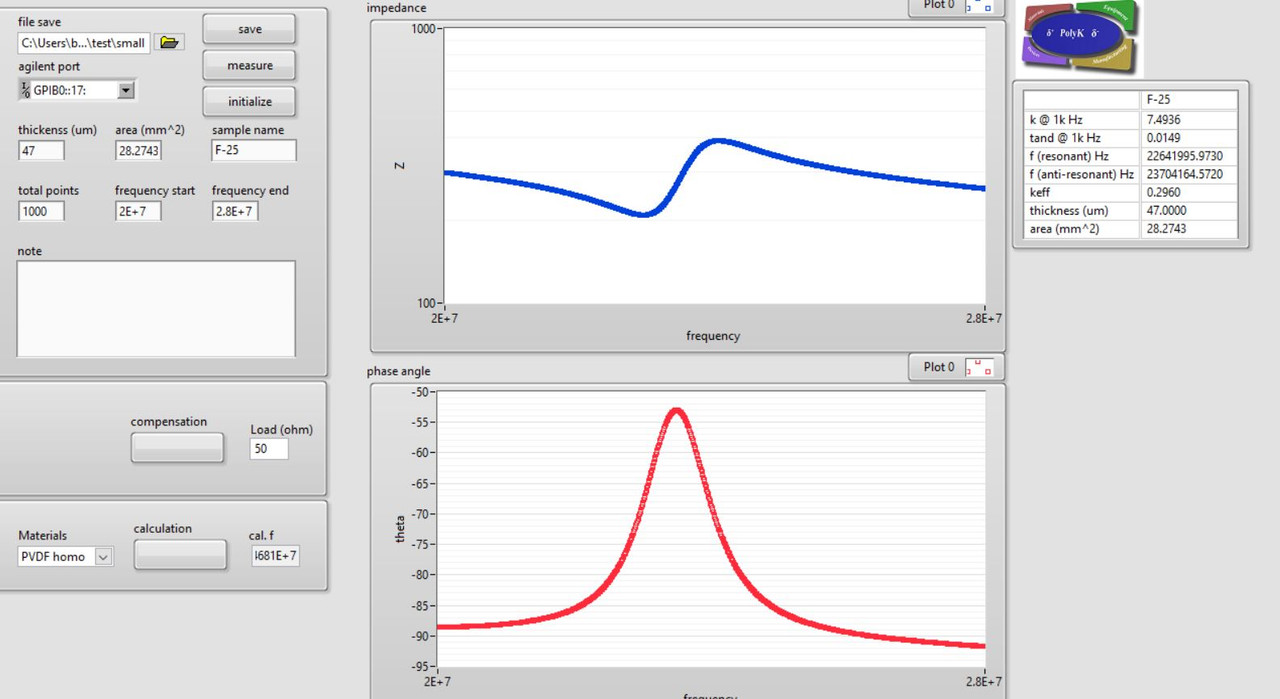

    4. A used Dell or Lenovo laptop with PolyK impedance software that can perform frequency scan, save data and plot, calculate resonannce frequency, dielectric constant, coupling factor, etc.

    Great for measuring resonance of piezo materials and transducers.

    Key Features & Specifications

    • Wide range impedance measurement: 40 Hz to 110 MHz, 10 mΩ to 100 MΩ
    • Gain-phase measurements: 10 Hz to 100 MHz, -107 dBm to +15 dBm, 0.1 dB resolution
    • Frexible measurement, computation, and analysis capabilities on a color graphic disply
    • Fully programmable
    The Agilent Technologies 4294A precision impedance analyzer greatly supports accurate impedance measurement and analysis of a wide variety of electronic devices (components and circuits) as well as electronic and non-electronic material.

    Moreover, the 4294A’s high measurement performance and capable functionality delivers a powerful tool to circuit design and development as well as materials research and development (both electronic and non-electronic materials) environments

    Other Details

    One month.
