  • Electrostatic Film High-K
  • Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m
  • Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m
  • Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m
  • Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m

    Uniaxially Oriented PVDF homopolymer film, 5 um to 20 um thick, 200 mm x 270 mm, dielectric constant 12, high dielectric breakdown >500 MV/m

    MSRP:
    Now: $150.00
    (You save )
    SKU:
    PVDF-MDO-

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Other Details

    Product Description

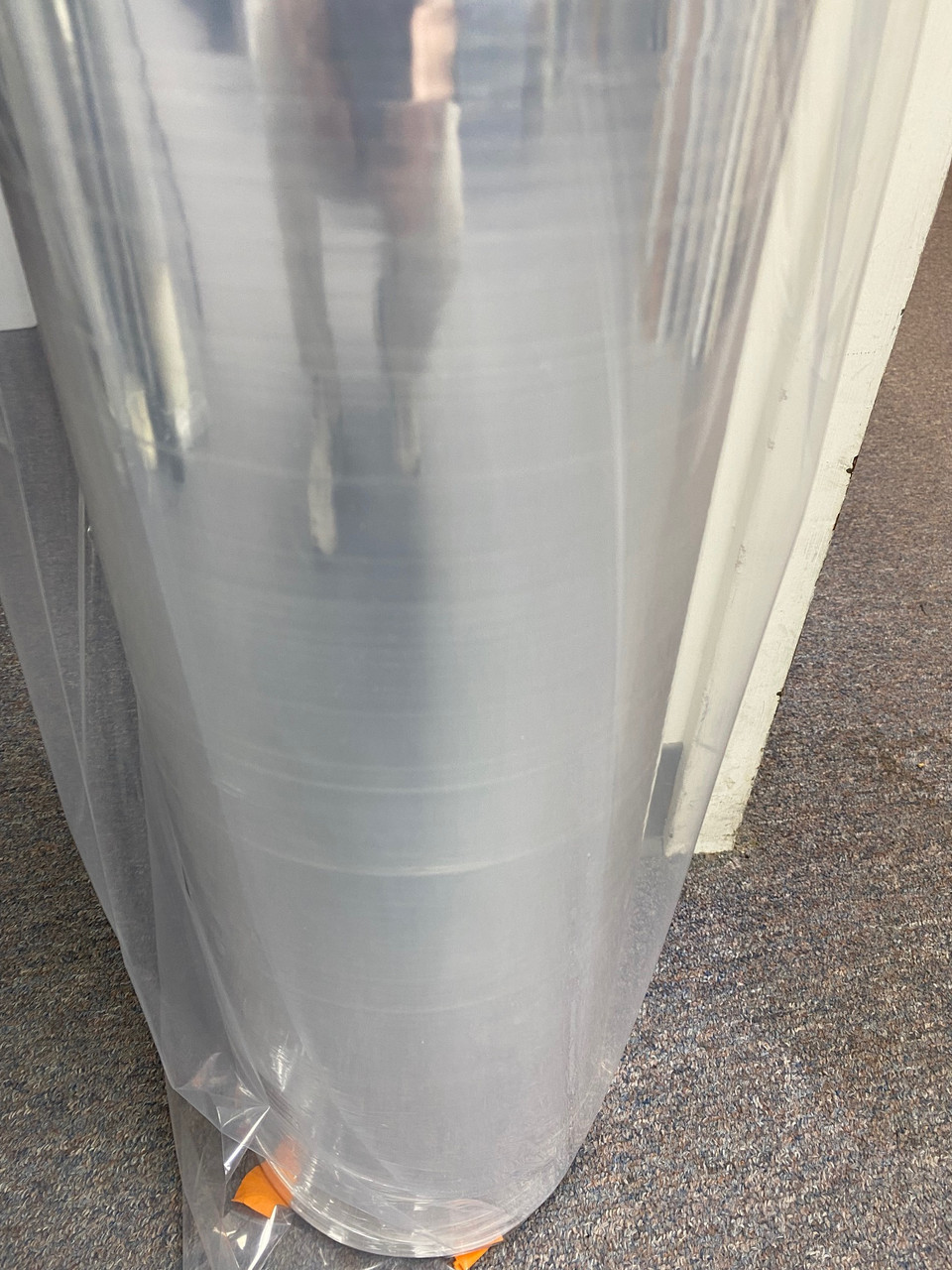

    Uniaxially oriented PVDF homopolymer film with thickness from 5 um to 20 um. High dielectric constant >12, High Dielectric Breakdown Strength > 500 MV/m. Great for high energy density film capacitors, electrostatic film, and piezo film.

    PVDF has dielectric constant about 12, 20% higher than PVDF-HFP. The Young's modulus of PVDF is also significantly higher than PVDF-HFP.

    The uniaxial orientation significantly improves the dielectric breakdown strength (energy density) and reduced the leakage current and energy loss. It also increases the tensile strength and Young's modulus.

    For electrostatic actuators, electrostatic adhesive, electrostatic brake, electrostatic haptics, etc. As the electrostatic force is proportional to the dielectric constant, and reversly proportional to the square of the thickness, this film can generte quite high electrostatic force even at low electric voltage.

    For example, for 5 um thick film, at 500 V (100 V/um), the electrostatic force can be >110 N (11 kg) per square cm.

    This film is NOT poled and it is non-piezoelectric.

    Related publications:

    HIGH ENERGY DENSITY FILM CAPACITORS https://pdfs.semanticscholar.org/bb9b/3f453fa4a838607814e4a77800a66ebb80f9.pdf

    https://ieeexplore.ieee.org/document/5386360

    Science: A Dielectric Polymer with High Electric Energy Density and Fast Discharge Speed

    https://science.sciencemag.org/content/313/5785/334

    Other Details

    For R&D, non-refundable
