Product Description
Customized piezo and pyro sensors using our PVDF film.

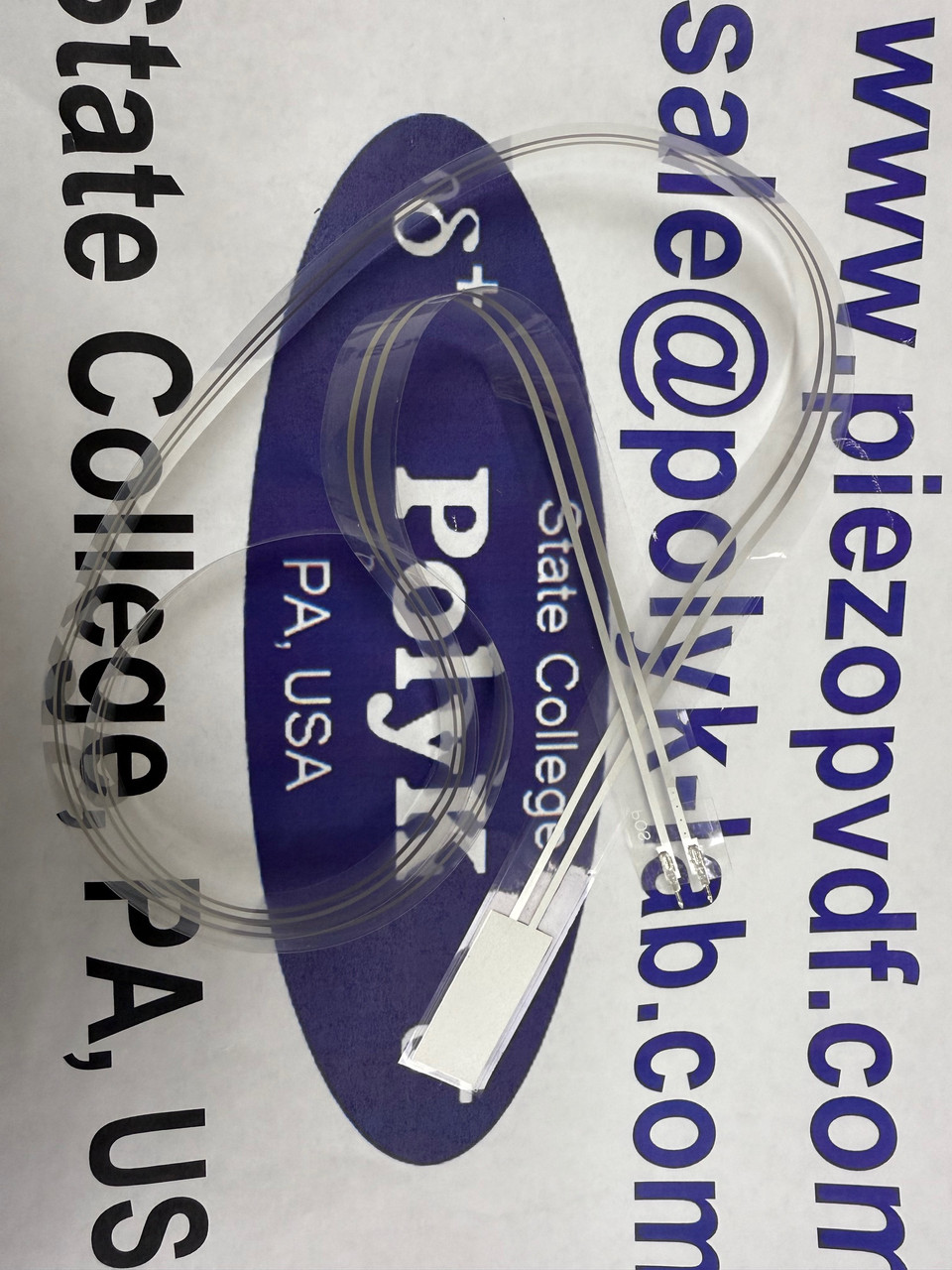

Specialty this sensor has extra long flexible lead that total 800 mm
The FDT1-052K has capacitance of 810 pF, 800 mm long flexible lead with solderable pin connectors. Made with 52 um thick PolyK piezo PVDF film.
With UV cured protection coating on the sensor active area.
Made in the USA. In stock and ship from State College, PA USA
Flexible silicone wires can be attached at additional cost.
The ultralong 800 mm flexible lead can be cut by customers to any shorter length with scissors.
Note: the effective area (capacitance) can be changed by simply cutting it with scissors to make it smaller. After cutting, please use IPA or acetone to clean the cutting edges and make sure there is no electrical short circuit between top and bottom electrode.
Prices include shipping. prices are different for USA and international customers.
