Product Description
Piezoelectric PVDF Sensors with leads. Made with PolyK piezo PVDF film with high d31.
Made with 110 um or 50 um thick PVDF film with water proof coating on both surfaces. With soldered wires.
total sensor thickness (with electrode and protective coating): 0.125 mm or 0.065 mm

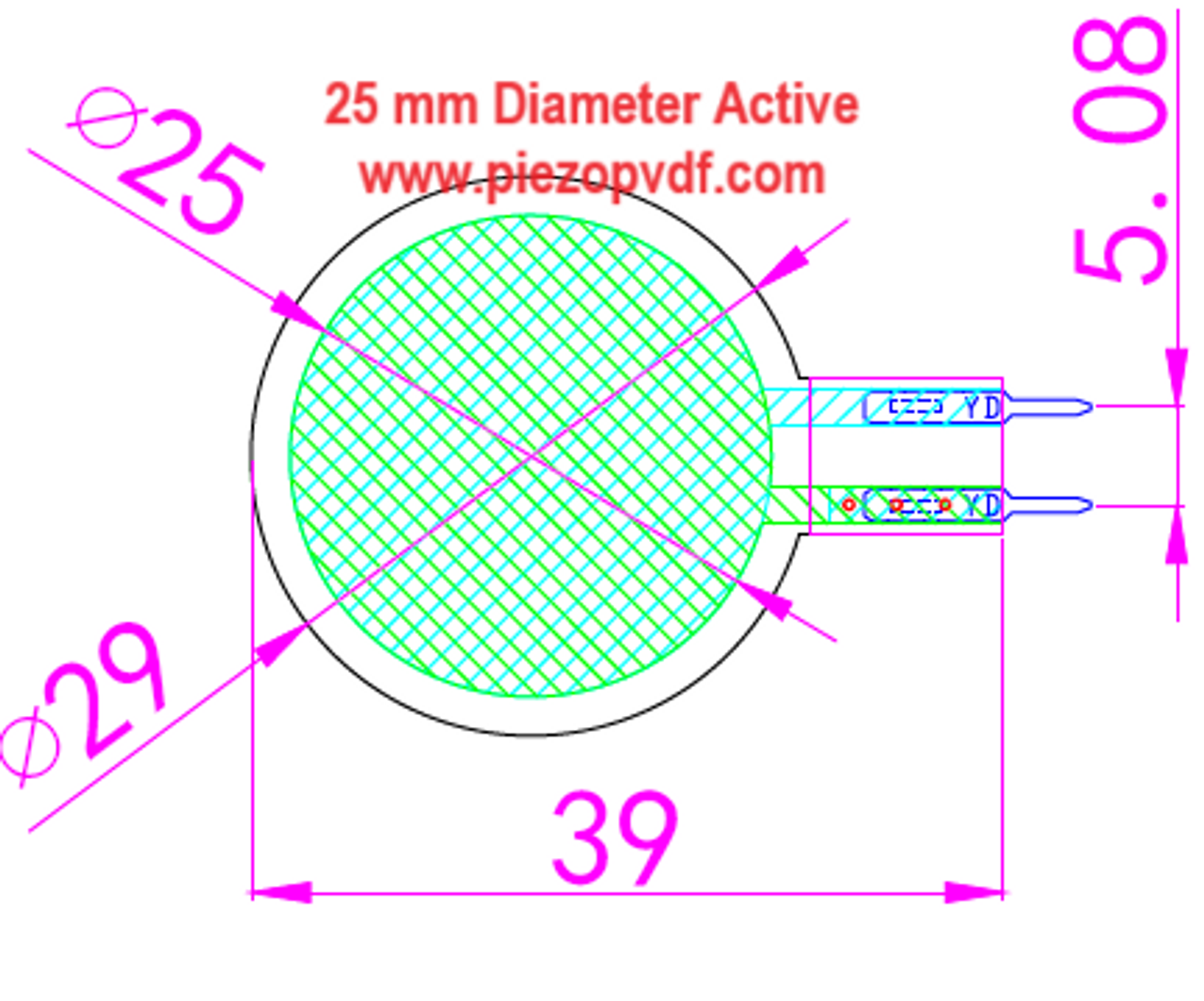

- Active area 25 mm diameter, capacitance of 490 pF at 20 C for 110 um thick film, and ~1.1 nF for 50 um thick PVDF film.
- Active area 10 mm diameter, capacitance of 80 pF at 20 C for 110 um thick film, and ~0.165 nF for 50 um thick PVDF film
Large quantity in stock. contact us for discounted price for order over 10
with screen printed silver electrode and protective coating
Can be laminated to any surface with double side tape [available upon request].
The shipping charge is for USA customers. For international customers, we may charge additional shipping.
