Product Description

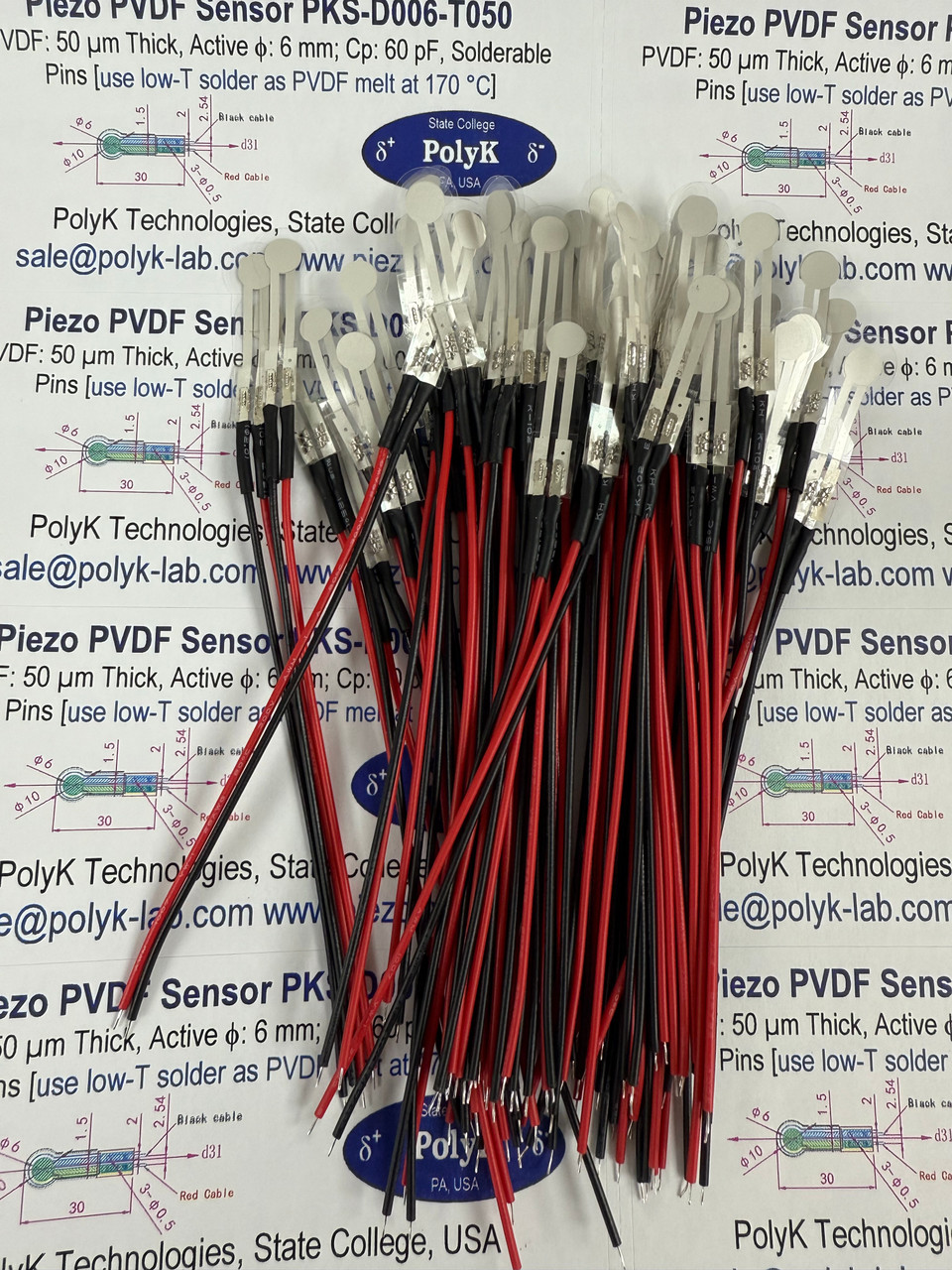

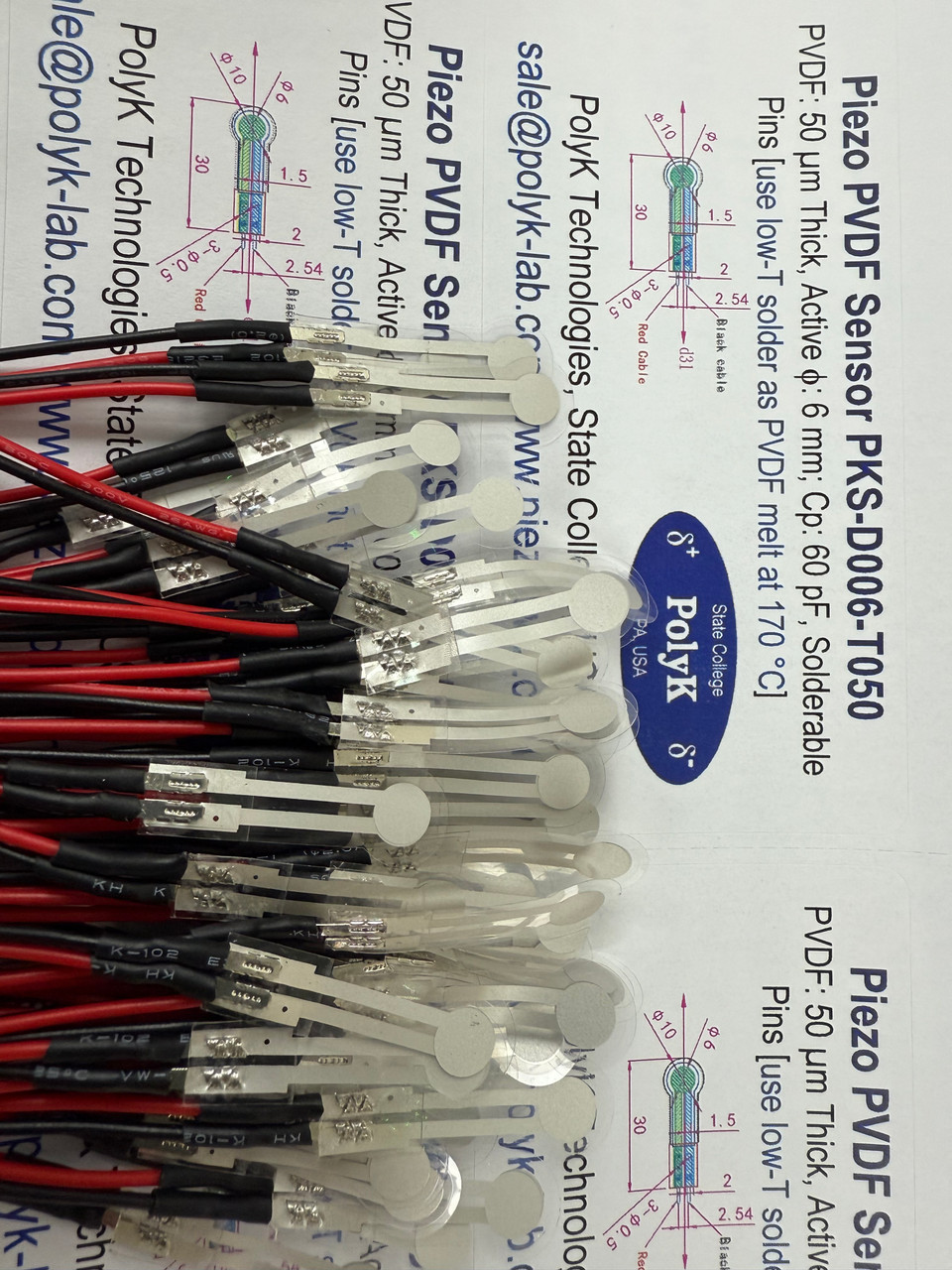

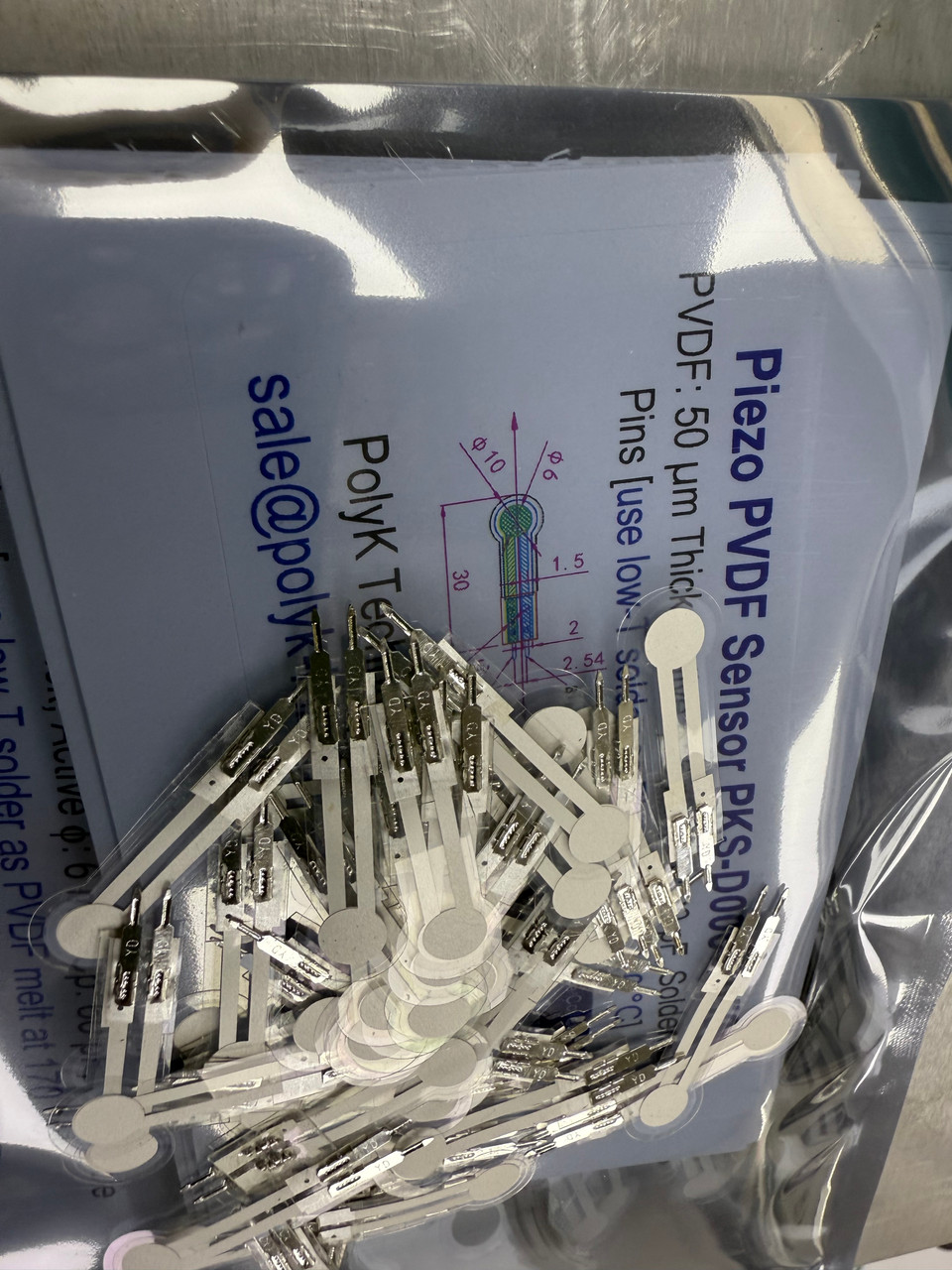

Piezoelectric PVDF Sensors with leads. Made with PolyK piezo PVDF film with high d31.
Made with 50 um thick PVDF film. With solderable pins or 100 mm long wires
total sensor thickness (with electrode and protective coating): 0.125 mm
Active area diameters: 6 mm; Total diameter 10 mm; Total length (NOT including wires): 30 mm; Total thickness: 0.06 mm
- Capacitance of 60 pF at 20 C and 1 kHz
Large quantity in stock. contact us for discounted price for order over 10
Can be laminated to any surface with double sided tape [available upon request].
We also sell charge amplifiers that will improve the sensor output signal and filter EMI noises [with high pass filter HPF and low pass filter LPF]:
https://piezopvdf.com/charge-amplifier/
The shipping charge is for USA customers. For international customers, we may charge additional shipping.
For international customer, please use "International" shipping as we will ship by FedEx Priority air (3-5 days to most countries, but you will need to pay import tax-duty-tariff).
