Product Description

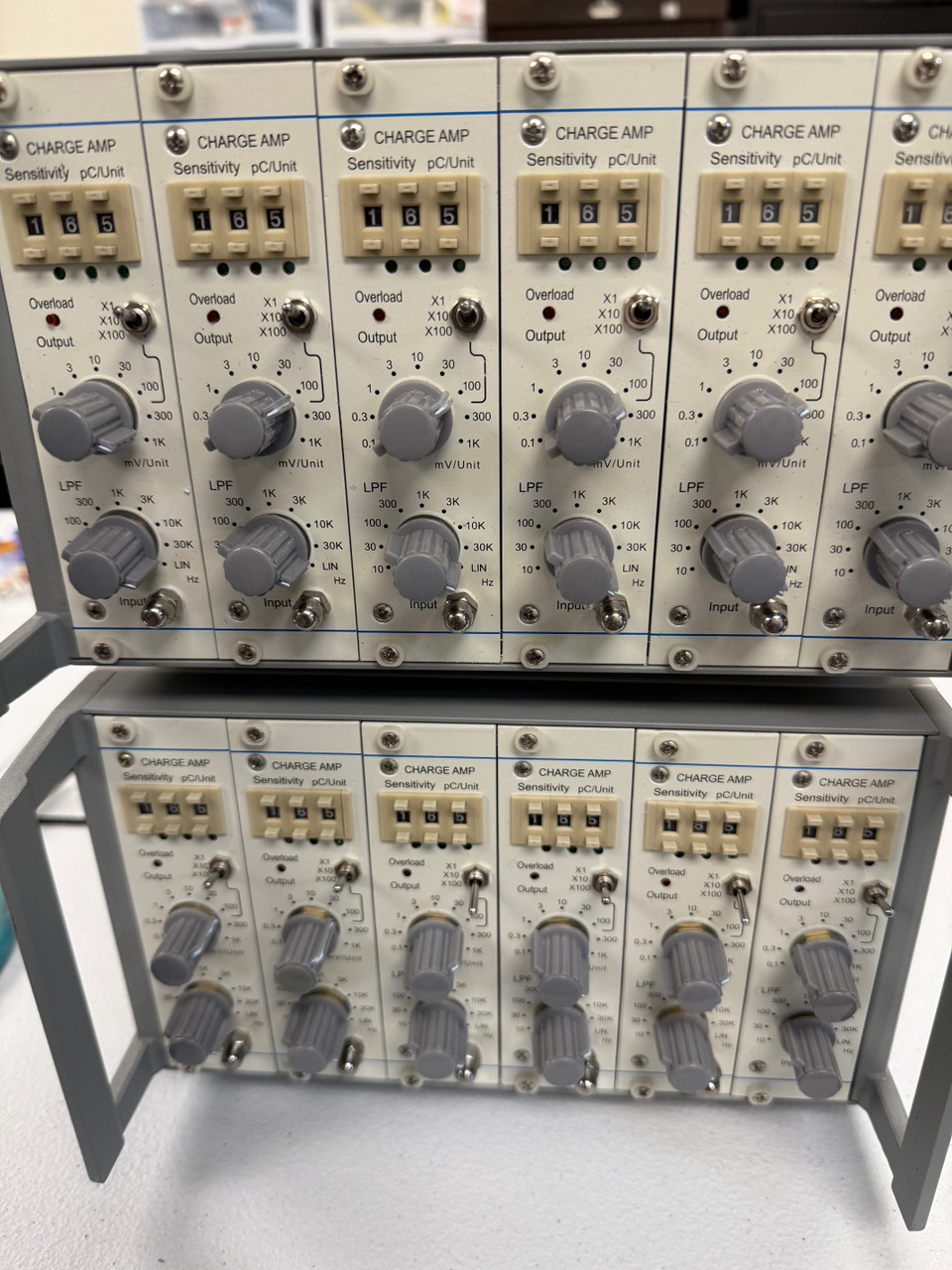

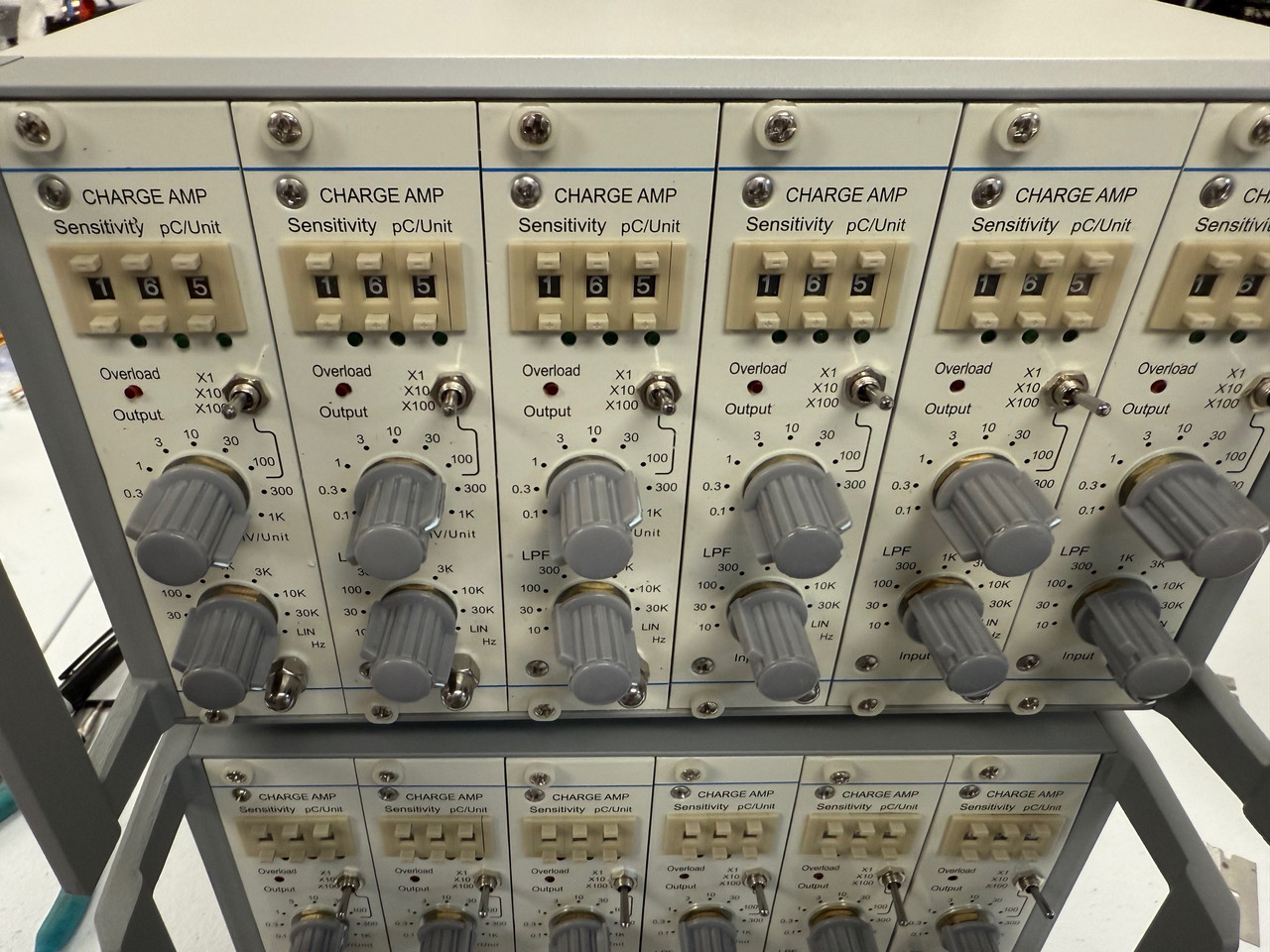

Advanced charge amplifiers for piezo and pyro sensors, charge mode
With six independent channels
L5 Input (sensors) and BNC Output
Low Pass Filter: 300 Hz, 1kHz, 3kHz, 10kHz, 30kHz, 100kHz
High Pass Filter: 0.3 Hz
0.01 to 1000 mV/pC Sensitivity Range in Charge Mode
1.00~10.00 pC/Unit
maximal charge: 100 nC
1, 3, 10, 30, 100, 300, 1000mV/Unit
Multi-Pole, Low-Pass and High-Pass Filtering with -3dB Frequencies
110/220Vac or external 24VDC Power Supply Operation
https://youtu.be/gsX0lLSm5dc?si=mkRxmeELkU4T6paI
We ship UPS ground for USA domestic orders, and FedEx Air shipping for international customers. price is higher for international customers due to additional shipping charges. Price NOT include import tariff, tax, or duty.
Recommended HS Code for international customer: 9026902000
